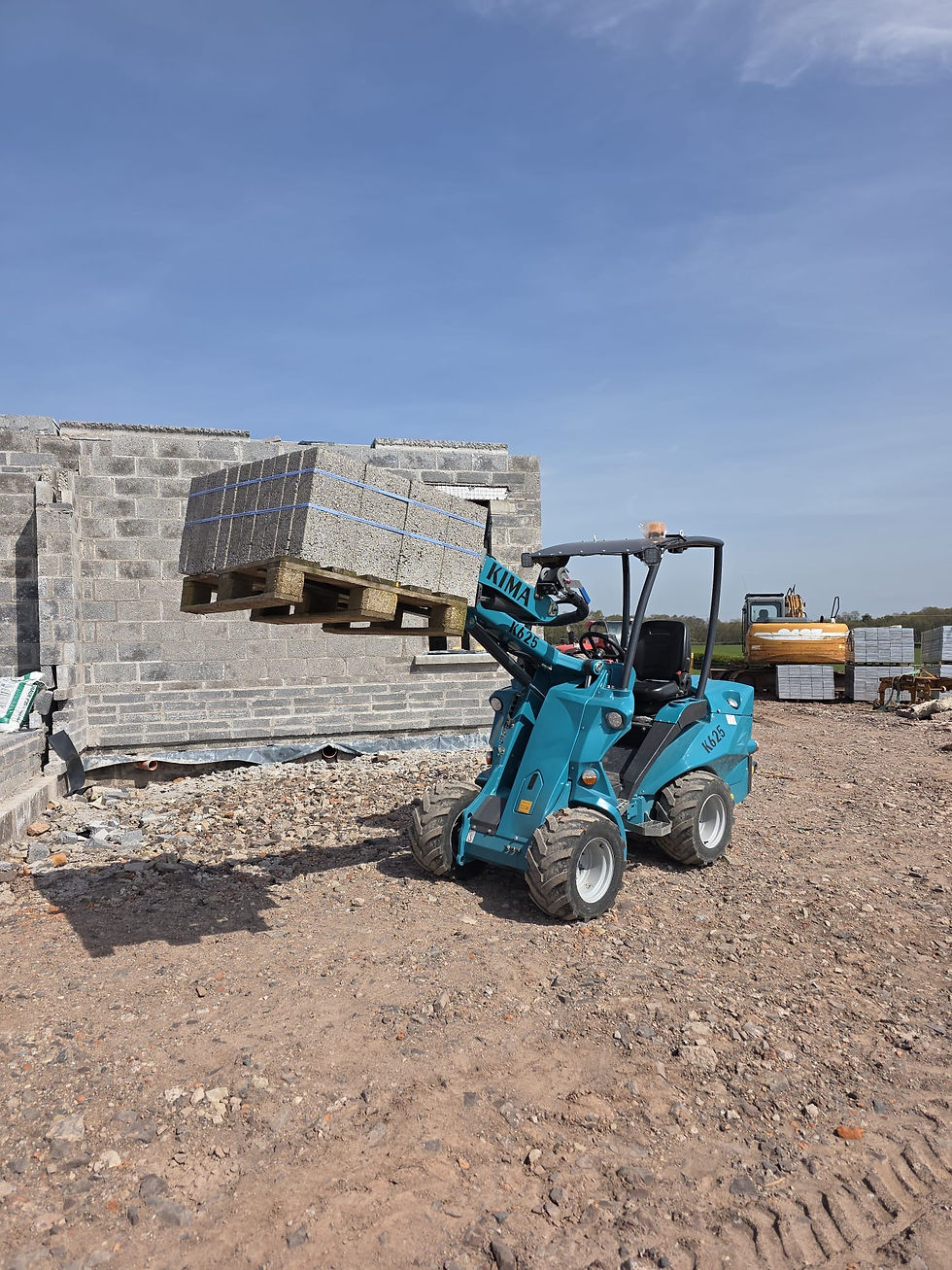

Kima K625
- Lifting height 2790mm
- Lifting capacity 850kg
- Kubota Diesel Engine
- Dimensions 1985x2570x1130mm (H,L,W)
- Comes standard with buckets & forks
- Led lights package
- Warranty & Backup
Dimension
Model K625
Length 2570 mm
Width 1130 mm
Height(with standard wheels) 1985 mm
Weight 1620 kg
Standard wheels 23x10_so-12
Max lifting height 2790 mm
Max. lifting capacity 850 kg
Tuming radius inside/outside 995 / 2050 mm
Engine specification
Engine KubotaD1105
Engine output 18_2kW
Fuel Diesel
Function 4_stroke
Coolant Water
Number of cylinders 3
Starter Electric
Transmission System
Transmission drive Hydrostatic
Pump Bondiola & Pavesi
Motor Poclain
Pulling force kp(23141bt)
Drive speed max 19 kph
Hydraulic oil tank capacity/flow pressure 36 1,'h1in,'200bar
Hydraulic oil type ISO VG 46
Travel motor gow speed) 200cc
Travel pump flow 23CC
Working pump flow socc
Sound pressure level 2000/14,EC LP: 81 dB (A)
Sound power level 2000/14,'EC Lw: 96 dB (A)
Hand-arm vibration, total <2,5 m/s2
Whole-body vibration, max <0.25 m/s2
Tyre
Tyre specification xlo_so-12
Front tyre pressure (Q&A) 10
Rear Tyre pressure (Q&A) 10
